In the competitive landscape of automotive engineering, the gap between a CAD design and a physical, functional prototype often determines the time-to-market. For powertrain components—specifically cylinder heads, engine blocks, and intake manifolds—traditional 3-axis or 4-axis machining strategies often fall short due to the need for multiple setups and the inability to reach complex undercuts.
At Autoprototypes, we leverage advanced 5-axis simultaneous CNC technology (similar to the industry-leading Centroid A560 architecture) to solve the most difficult challenges in automotive rapid prototyping.
Here is how our specialized machining capabilities accelerate your R&D cycle.
1. Conquering Complex Geometries: The "Articulating" Advantage
The biggest challenge in prototyping cylinder heads is machining the intake and exhaust ports. These internal cavities often feature complex curves and deep undercuts that standard tools cannot reach.
By utilizing 5-axis articulating head technology, our equipment allows the spindle to tilt and rotate freely. This enables the cutting tool to reach deep into the cylinder head casting or billet block, machining complex port geometries in a single continuous operation.
Why this matters for R&D:
- No Castings Required: We can machine fully functional prototypes directly from solid billet aluminum (6061-T6 or 7075), eliminating the expensive and slow tooling cost of casting molds.
- Fluid Dynamics Optimization: We can precisely replicate your CFD (Computational Fluid Dynamics) simulations, ensuring the prototype performs exactly as designed on the flow bench.
2. The "One-Setup" Philosophy: Precision Through Efficiency
In traditional machining, switching a part from a "porting fixture" to a "decking fixture" introduces cumulative tolerance errors. Every time a part is unclamped and re-clamped, micron-level deviations occur.

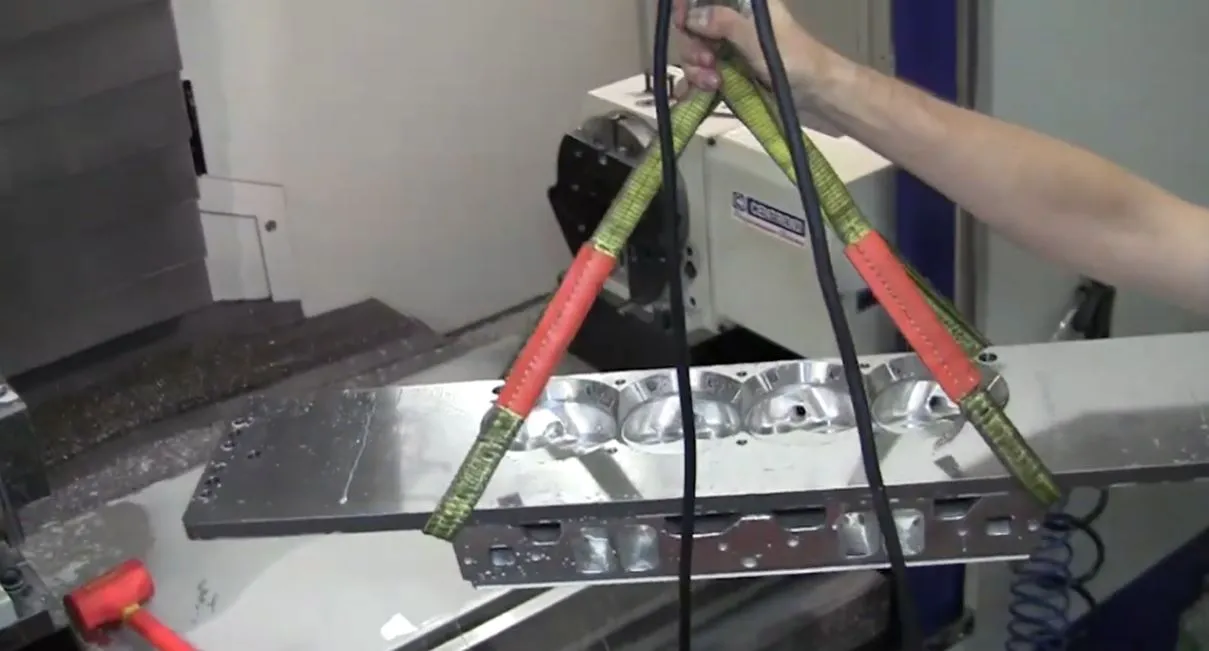

Our facility utilizes multi-purpose fixture systems designed for zero-changeover efficiency. Whether we are machining the deck surface of an engine block, boring the cylinders, or porting the heads, the component stays rigid and fixed.
- Improved GD&T: By maintaining a single datum reference, we ensure superior flatness, perpendicularity, and true position tolerances.
- Faster Turnaround: Eliminating hours of setup time means your prototypes move from the machine to the inspection room hours (or days) sooner.
3. Reverse Engineering: From Physical Part to CAD
Ideally, every project starts with a perfect CAD file. In reality, automotive restoration, restomod projects, or competitive benchmarking often start with a physical part—sometimes a hand-ported masterpiece by a veteran engine builder.
We offer integrated Digitizing and Reverse Engineering services. Using high-precision touch probes directly on the CNC spindle, we can scan an existing cylinder head or combustion chamber.
- Digitize: We capture the point cloud data of the physical part.
- Optimize: Our engineers clean up the mesh, smooth the surfaces, and optimize wall thicknesses in CAD.
- Duplicate: We generate a CNC toolpath to reproduce the design with 100% repeatability.
![Image Suggestion: Screenshot from video at 02:37 showing the probe scanning the cylinder head. Caption: In-machine digitizing allows us to reverse engineer complex organic shapes.]
4. Production-Grade Surface Finishes
A prototype isn't just for show; it often needs to seal fluids and withstand combustion pressures immediately.
Our rigid 5-axis setup allows for heavy-duty roughing and high-speed finishing. We can achieve mirror-like deck surfaces with extremely low Ra (Roughness Average) values, ensuring head gaskets seal perfectly without additional manual lapping or grinding. This is critical for high-compression prototype engines where seal integrity is non-negotiable.
Conclusion: Your Partner in Precision
Whether you are developing a next-generation hybrid powertrain or a custom racing engine, you need a manufacturing partner that understands the nuances of automotive components.
At Autoprototypes, we don't just machine metal; we validate engineering concepts. Our investment in 5-axis technology ensures that your most complex designs are manufactured with the speed and precision the automotive industry demands.
Ready to start your next project? Upload your 3D CAD files today for a DFM analysis and rapid quote.
